Industrial Horizontal Axial Flow Pump With Advanced Technology Customization Manufacturers
A horizontal axial flow pump is a type of pump used to move large volumes of fluid horizontally. It is designed to produce axial flow, which means that the fluid flows parallel to the shaft of the pump, as opposed to radial flow, which flows outward from the center of the pump.
These pumps typically have a propeller-like impeller that rotates and creates a low-pressure zone, which draws the fluid into the inlet of the pump. The impeller then forces the fluid outward, generating a high-volume, low-pressure flow of fluid.
Power range: 7-1000kW
Voltage: 380v(Customized)
Rotor Diameter: Customized
Material: Cast Iron / stainless steel
Installation: horizontal
Horizontal axial flow pumps are used in a variety of applications where a high volume of fluid needs to be moved horizontally. Some of the most common uses of horizontal axial flow pumps include:
1. Irrigation Systems: Horizontal axial flow pumps are used to move large volumes of water for irrigation purposes in agriculture.
2. Drainage Systems: They are used to remove excess water from flooded areas, such as fields or construction sites.
3. Water Treatment Plants: These pumps are used to move water in large quantities for treatment and distribution.
4. Cooling Systems: Horizontal axial flow pumps are used in cooling systems for power generation plants, refineries, and other industrial applications.
5. Marine Propulsion: They are used as the primary propulsion system for ships and boats, such as barges and tugboats.
6. Flood Control: Horizontal axial flow pumps are used in flood control systems to move water from low-lying areas to higher elevations.
7. Mining: They are used in the mining industry to move large volumes of water and other fluids from mines.
8. Fish Farms: They are used in aquaculture to move large volumes of water to create the right conditions for fish growth.
The axial flow pump is designed with a customized inlet and outlet size, making it perfect for a variety of applications.
The AFP is also available for ODM/OEM orders. This means that you can order a customized pump that is designed specifically for your application.
Technical Data:
| Model | Installation
Angle blade | Capacity
m3/h | Head
m | Speed
r/min | EFF
% | Shaft Pwer
N |
| DNR-250 |
| 300 | 2.5 | 980 | 60 | 3.4 |
| DNR-300 |
| 520 | 3 | 980 | 62 | 6.8 |
| DNR-350 |
| 1350 | 4 | 980 | 65 | 29.6 |
| DNR-450 |
| 2200 | 4 | 980 | 68 | 35.2 |
| DNR-500 |
| 2650 | 4 | 740 | 70 | 42 |
| DNR-550 |
| 4000 | 4 | 740 | 70 | 62.8 |
| DNR-700 | -4°C | 4772 | 3.3 | 340 | 75.6 | 56.7 |
| -2°C | 5320 | 3.4 | 400 | 76.1 | 64.7 |
| 0°C | 5700 | 3.5 | 430 | 76.9 | 70.7 |
| -2°C | 6154 | 3.6 | 460 | 76.6 | 78.8 |
| 4°C | 6579 | 3.6 | 490 | 75.2 | 85.8 |
| DNR-900 | -4°C | 7748 | 3.3 | 424 | 76.1 | 94.3 |
| -2°C | 8407 | 3.4 | 77.4 | 100.6 |
| 0°C | 9000 | 3.5 | 78 | 110 |
| -2°C | 9656 | 3.6 | 77.3 | 119.1 |
| 4°C | 10280 | 3.6 | 77.4 | 130.2 |
| DNR-1000 | -4°C | 9210 | 3.3 | 380 | 76.3 | 111.8 |
| -2°C | 1078 | 3.4 | 77.5 | 132.6 |
| 0°C | 11000 | 3.5 | 78 | 134.4 |
| -2°C | 11970 | 3.6 | 77.3 | 151.1 |
| 4°C | 12700 | 3.6 | 76.5 | 162.8 |
Display:
|
|

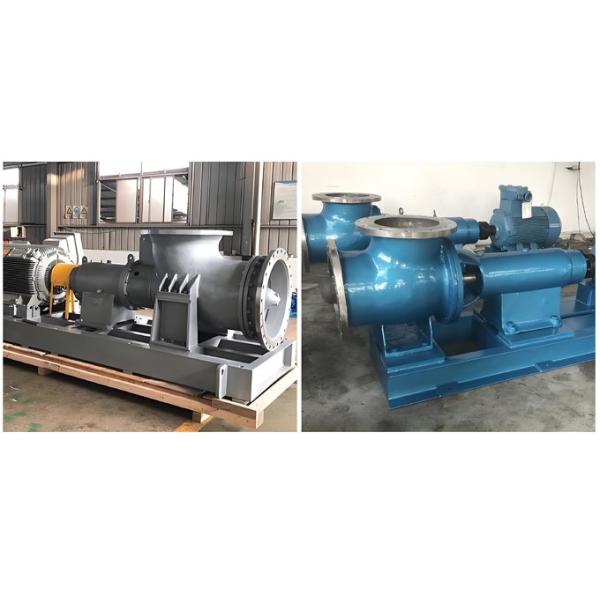

Horizontal Axial Flow Pump Images
|
